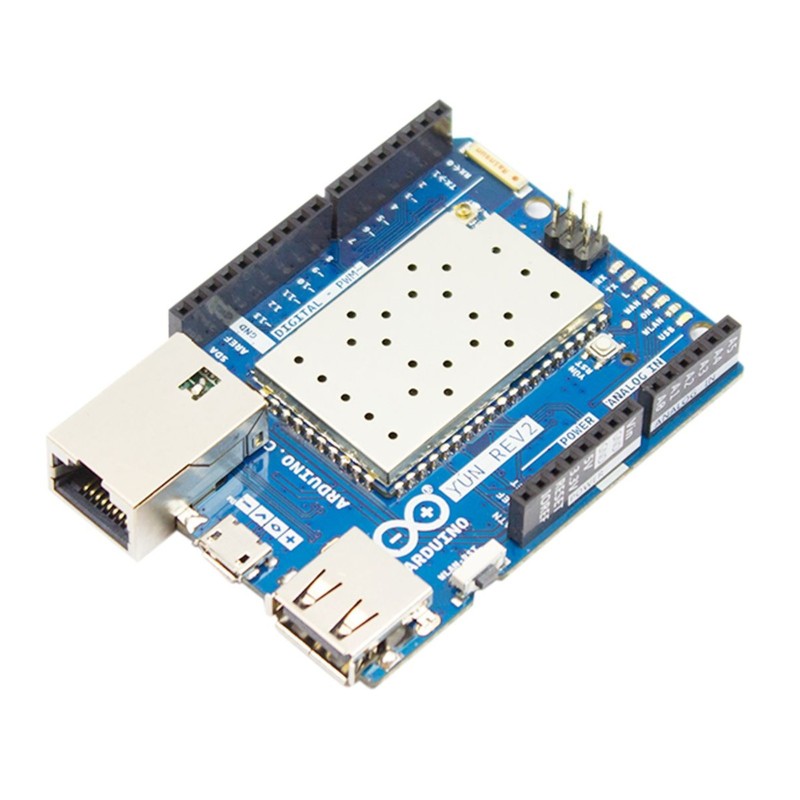

Arduino YUN Rev 2
$114.99
The Arduino YUN Rev 2 has built in ethernet and Wifi Support with the familiar UNO form factor.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Arduino Yun Rev 2 is what you're looking for if you want an Arduino board that has built in wifi and ethernet capabilities. Based on the ATmega32u4 and the Atheros AR9331 which supports OpenWrt-Yun, a Linux distribution based on OpenWrt. The YUN compared to the more popular UNO R3 has built-in Ethernet and WiFi support, micro-SD card slot, 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs) in addition to a USB port, a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a 3 reset buttons.
Specifications:
| Microcontroller | ATmega32u4 |
| Operating Voltage | 5V |
| Input Voltage | 5V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (of which 4 KB used by bootloader) |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| Linux microprocessor | |
| Processor | Atheros AR9331 |
| Architecture | MIPS @400MHz |
| Operating Voltage | 3.3V |
| Ethernet | IEEE 802.3 10/100Mbit/s |
| WiFi | IEEE 802.11b/g/n |
| USB Type-A | 2.0 Host |
| Card Reader | Micro-SD |
| RAM | 64 MB DDR2 |
| Flash Memory | 16 MB |
| PoE compatible 802.3af card support (see the note below) | |
| Length | 73 mm |
| Width | 53 mm |
| Weight | 32 g |
- LininoOS
- Software stack updated to OpenWRT latest version, including all patches
- SSL support on the bridge Arduino / Linux bridge
- LEDs
- ON (green): indicates that the shield is properly powered
- WLAN (blue): indicates a connection to a wireless network
- WAN (red): indicates connection to ethernet
- USB (white) : indicates system activity and/or if a USB key is mounted
