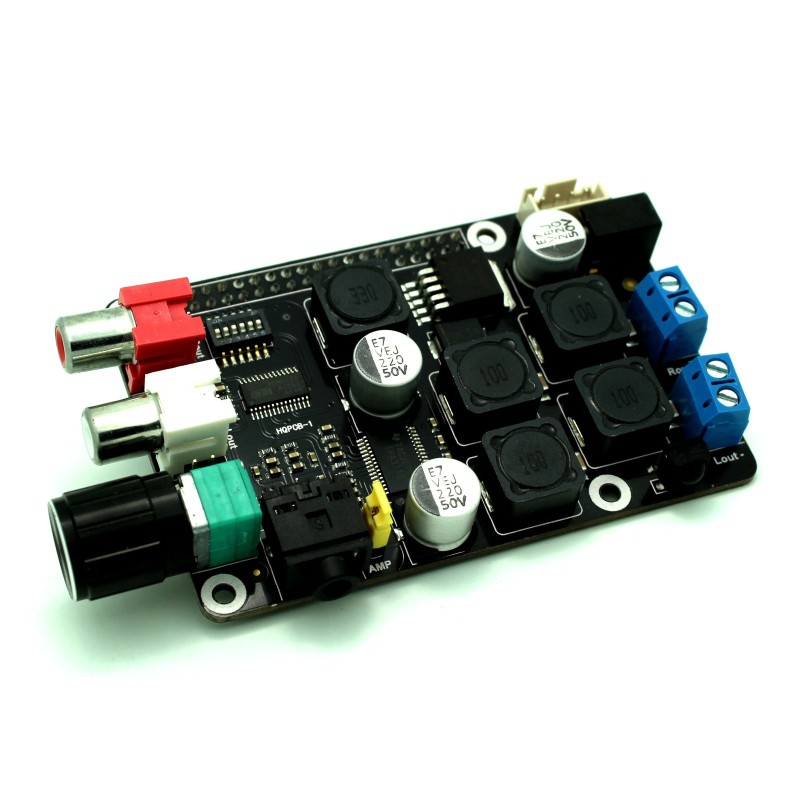

X400 v2.0 Raspberry Pi DAC Hifi Audio Hat Suptronics
$65.99
✅SHIPS TODAY
Want High-Quality Audio Output for the Raspberry Pi? This Hifi Audio Card fits directly on top of your Raspberry Pi's 40 Pin GPIO pins! Save space with this Hifi DAC Hat for Raspberry Pi. Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Audio:
- Full-HD audio – up to 24-bit/192kHz playback
- Class leading audio; 112db SNR, and THD of 0.0019%
- Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
- Uses the digital I2S audio signals to reduce CPU load over USB audio solutions
- Integrated hardware volume control
- Mute can be enabled / disabled via jumper
- Built in High quality audio headphone amplifier (TI TPA6133A)
- Earphone AMP can be enabled / disabled via jumper
- Built in High quality Class-D stereo audio amplifier (TI TPA3118D2)
- Up to 2 x 20W into 4 ohm
- AMP can be enabled / disabled via jumper
- Phono/RCA connectors Right & Left
- 3.5mm stereo audio jack
- Speaker terminals
Input Voltage:
- 6V to 24Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
- Vin Power Input Plug: 4 Pin JST XH
Wireless:
- Built in IR sensor (38KHz)
Misc:
- Power output socket
- DIP switch to remove connection from RPi’s pin header
- Directly connected on top of the Raspberry Pi using the board GPIO header pins
- No wiring nor soldering is required
- Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
- Works with Volumio (Volumio 2.444)
