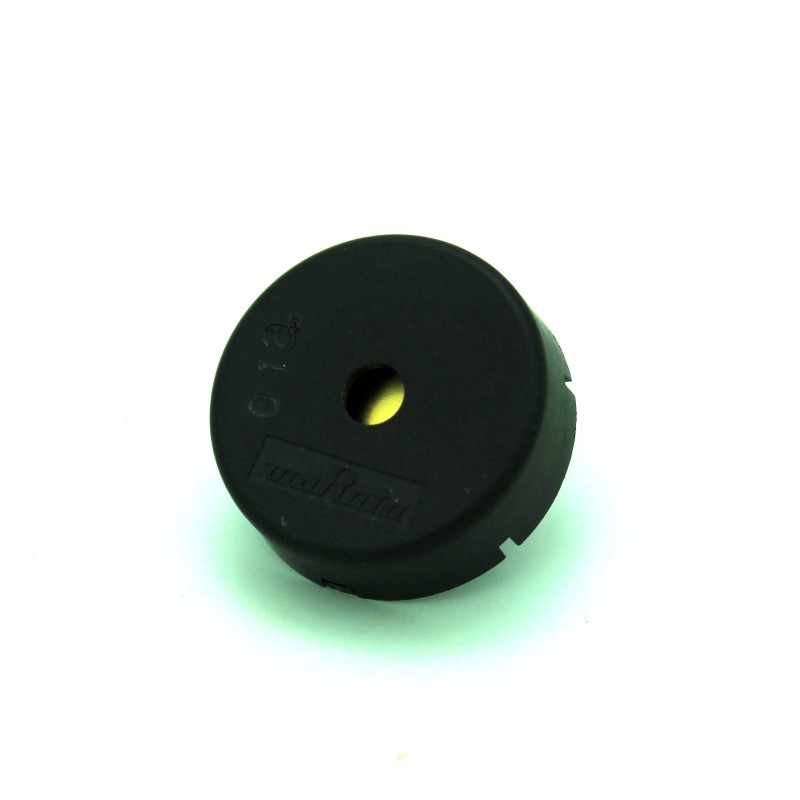

Thru Hole Piezo Electric Transducer / Buzzer 1.5VAC 22mmx11mm PKM22EPP-40
$1.99
✅SHIPS TODAY
This 22mm plastic encased piezo buzzer has through hole leads. Just give it an AC signal between 1.5V and 30V and you'll have a buzz that can be heard at 75dB @ 1.5V.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This 22mm wide Piezo Electric Transducer is a buzzer. Most piezo electric transducers, including this one, require an AC or alternating signal to power them. Just hook this buzzer up to a 1.5V - 30V AC power source and your projects will have sound!
- Operating Voltage: 1.5-30V AC (Alternating current)
- Rated Voltage: 1.5Vac
- Max Voltage: 30Vac
- Resonant Frequency: 4kHz
- Sound Pressure Level: 75dB
- Diameter: 0.79" (20mm)
- Height: 0.43" (11mm)
- Connector Type: Throgh Hole Pins
- Tone Type: External Drive
- Color: Black
- Operating Temperature: -20°C ~ 70°C
Want to use this Buzzer with a DC power source? Below you'll find a simple oscillator circuit to get this buzzer running with a 555 timer, 2 resistors and a capacitor. Otherwise, just pick up one of our Solid State Buzzers with a built in oscillator circuit!
