Teensy Ethernet Kit for Teensy 4.1

Add an ethernet port to your Teensy 4.1 with this Teensy add on ethernet kit.

This kit has all the parts needed to connect to the Ethernet port on Teensy 4.1.

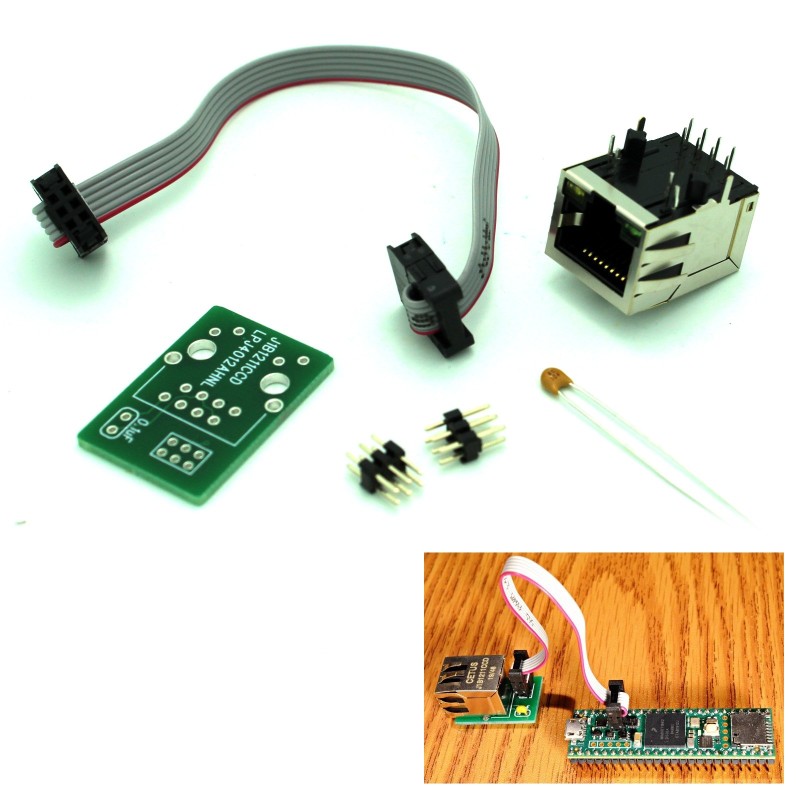

This kit includes an Ethernet MagJack, bare circuit board, ribbon cable assembly, 2 header pins, and a capacitor. DIY soldering is required.

Assembling The Ethernet Kit

The first step is to solder the capacitor.

Next solder the header pins. After soldering 1 pin, turn the board over to check if the pins are at a right angle to the board. Once 2 or more pins are soldered, fixing crooked pins is almost impossible.

Last, solder the Magjack.

You will also need to solder the remaining header pins to your Teensy 4.1.

After soldering, plug the 2 boards together with the cable assembly.
