Signal Generator Sine Square Triangle Wave ICL8038 Monolithic Function
$9.30
✅SHIPS TODAY

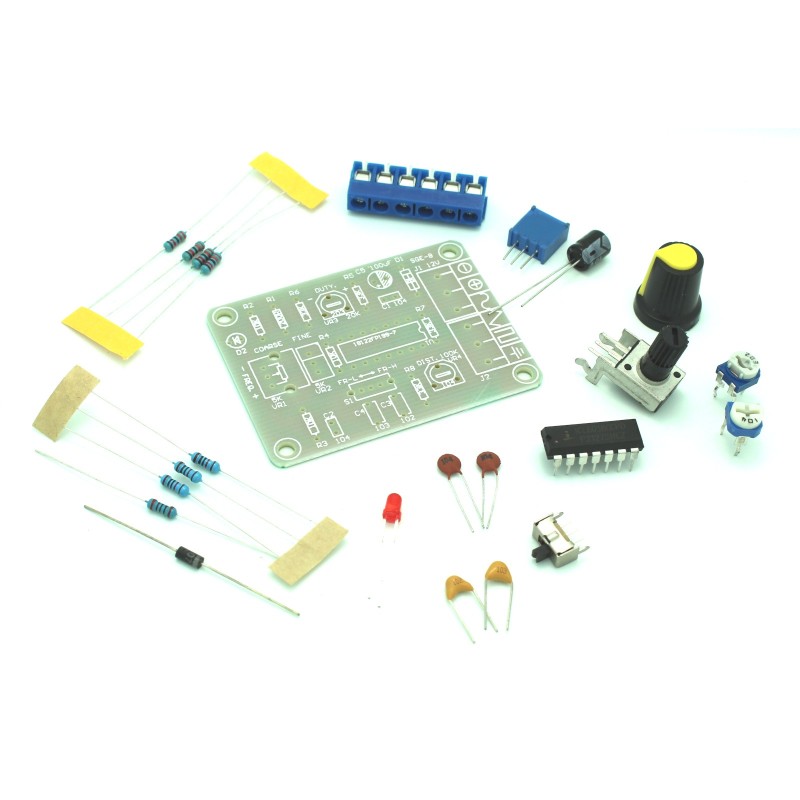

Signal Generator Sine Square Triangle Wave ICL8038 Monolithic Function Generator Soldering Kit. Solder it together to have square waves, sine waves and triangle waves with a built in knob to adjust the frequency.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
ICL8038CCPD ICL8038 Waveform Generator Soldering Kit. The ICL8038 waveform generator is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms
Features:
- ICL8038CCPD ICL8038 Signal Generator
- Sine, Square and Triangle Waves
- Solder it together to have square waves, sine waves and triangle waves with a built in knob to adjust the frequency.
- Waveform generator
- Capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms!
- Low Frequency Drift with Temperature: 250ppm/oC
- Low Distortion: 1% (Sine Wave Output)
- High Linearity: 0.1% (Triangle Wave Output)
- Wide Frequency Range: 0.001Hz to 300kHz
- Variable Duty Cycle: 2% to 98%
- High Level Outputs: TTL to 28V
- Simultaneous Sine, Square, and Triangle Wave Outputs
- Easy to Use - Includes all the components on the board! Full circuit.
- Input Voltage: 12V DC
- Frequency range 50-5KHz,
- Dimensions: 6x4.5x0.2cm
- Weight: 0.9oz
- Designed for a frequency range is 50-5KHz, two bands with a switch S to switch, RP1 is the frequency adjustment, RP2 is the duty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses 12V single power supply, input from the X1; X2, X3 is a waveform output side, you can use an oscilloscope to observe the three output waveforms.
