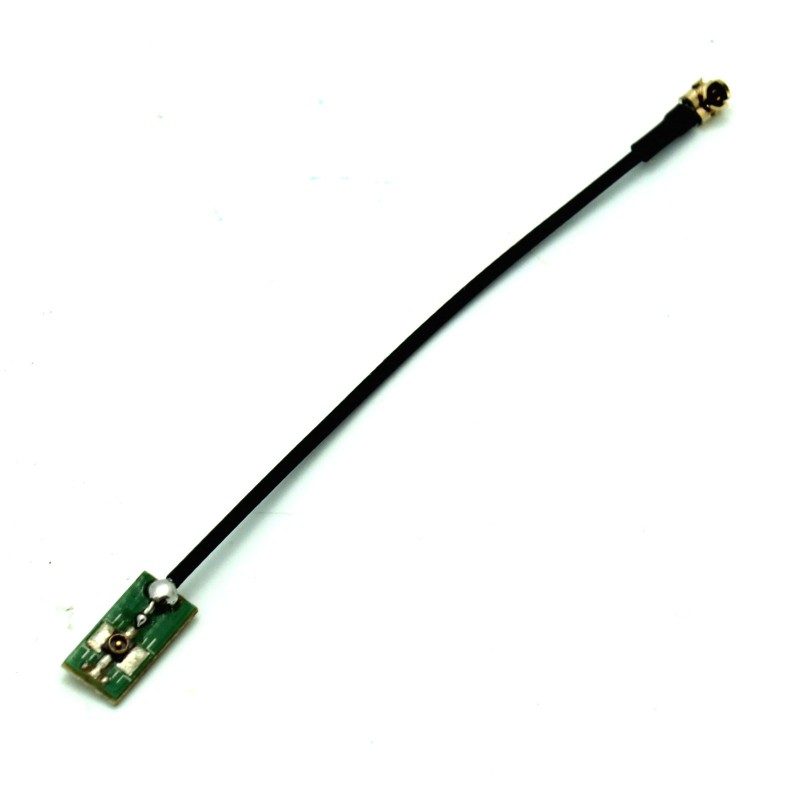

MHF4 to U.FL PCB Antenna Size Converter UFL IPEX IPX
$4.99
✅SHIPS TODAY
MHF4 to U.FL PCB Antenna Size Converter UFL IPEX IPX. 1 UFL U.FL PCB 0.81mm IPX Plug Right Angle to MHF4 PCB socket.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Useful for adapting between uFL/u.FL/IPX/IPEX antenna connections on printed circuit boards and MHF4 antenna cables
- Side A : MHF4 on PCB ( center is male pin )
- Side B : uFL/u.FL/IPX/IPEX SMD plug right angle connector ( center hole is female pin )
- Cable Type : OD 0.81mm diameter RF Pigtail Coax
- Cable Length : 2 inches ( 5cm )
- Impedance : 50 ohm
- Gold plated or Nickel plated contacts
- Salt spray test : >= 48 hours, enhanced corrosion resistance
- Mounting : machined brass construction crimp & soldered mount
- Connection Protection: Black Heat Melt Shrink Tube Versafit or equivalent
- Operating frequency :0-6 GHZ ( option: 1.2Ghz 2.4Ghz 3Ghz 6Ghz 8Ghz 12Ghz 18G... )
- Technical characteristics : temp. range : -65 to +165 ( PE cable range : -55 to +85 )
TS3980
