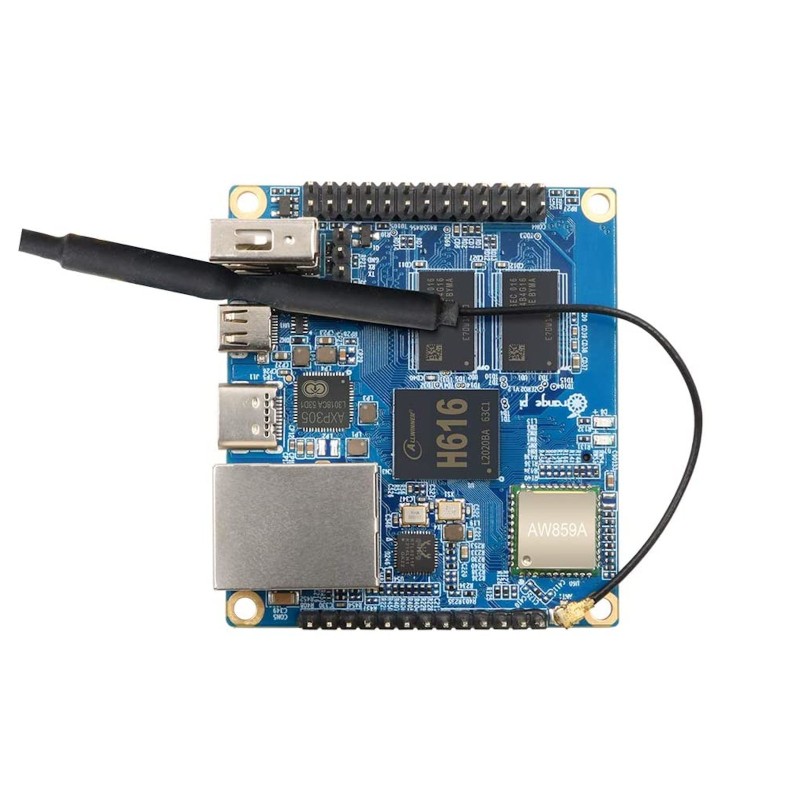

Orange Pi Zero 2 1GB RAM with Allwinner H616 Chip,Support BT, Wifi ,Run Android 10,Ubuntu,Debian OS Single Board

CPU

Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor

GPU

Mali G31 MP2
Supports OpenGL ES 1.0/2.0/3.2、OpenCL 2.0

Video decoding

• H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps
• VP9 Profile 2 decoder up to 4K@60fps
• AVS2 JiZhun 10bit decoder up to 4K@60fps
• H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps

Video encoding

• H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps
• JPEG snapshot performance of 1080p@60fps

Memory(SDRAM)

512MB/1GB DDR3 (Shared with GPU）

Onboard Storage

• TF card slot
• 2MB SPI Flash

Onboard Network

Support 1000M/100M/10M Ethernet

Onboard WIFI+BT

• AW859A Chip
• Support IEEE 802.11 a/b/g/n/ac
• Support BT5.0

Video Outputs

• Micro HDMI 2.0a up to 4K@60fps
• TV CVBS output, Support PAL/NTSC（Via 13pin interface board）

Audio output

• Micro HDMI
• 3.5mm audio port (Via 13pin interface board)

Power Source

Type-C interface 5V2A input (Recommended power supply: TS3136)

USB 2.0 Ports

3*USB 2.0 HOST（Two of them are via 13pin interface board）

Low-level peripherals

• 26pin header with I2C, SPI, UART and multiple GPIO ports
• 13pin header with 2*USB Host, IR pin, Tv-out、AUDIO (no MIC) and 3 GPIO ports

Debug serial port

UART-TX、UART-RX and GND

LED

Power led & Status led

IR receiver

Support IR remote control (via 13pin interface board)

Supported OS

Android10、Ubuntu、Debian

Dimension

53mm×60mm

Weight

30g
