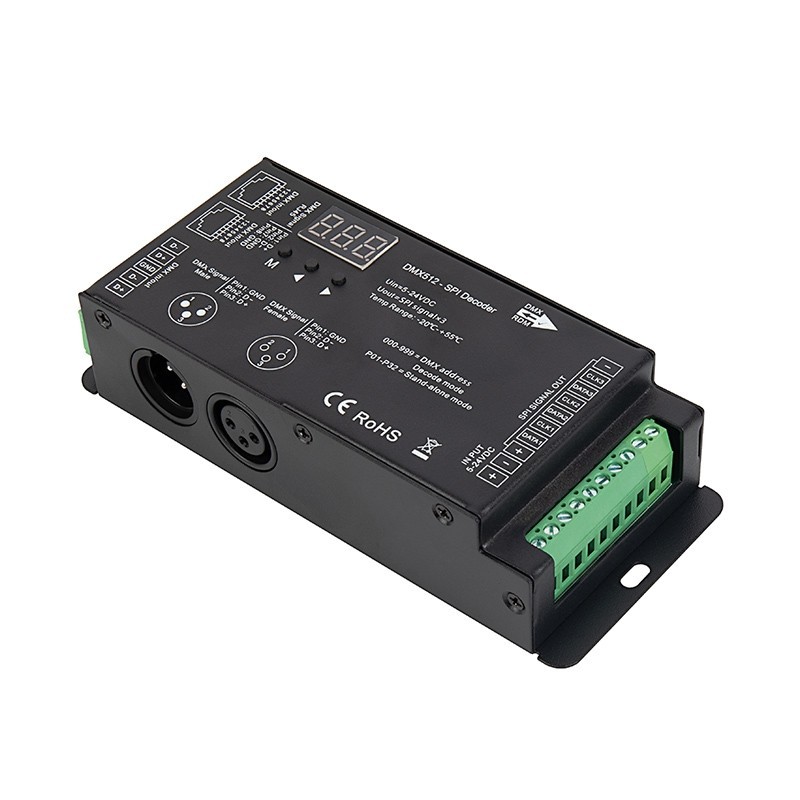

DMX512 SPI Decoder - Digital RGB Addressable LED Decoder/Controller - 5-24 VDC

Features:

• DMX Controller for 3 Pin Addressable RGB LED Pixel Strips
• Allows you to control 5V-24V 4-Pin RGB LED Strips (with 3 channels, Red Green & Blue) via DMX
• Input voltage: 5V - 24V DC (for 5V WS2811, WS2812 , WS2812B, LPD6803, TM1812 RGB LED strips, use 5V)
• DMX23 series DMX512 Decoder converts DMX signals to an SPI digital signal for controlling digital LED lights.
• Compatible with several IC chip types (see complete list below), this interface will run anywhere from 5-24 VDC and control up to 1024 pixels, making it possible to individually control digital pixel lights,
• DreamColor LED strip lights, and other modules with compatible IC chip types.
• Choose from among 32 dynamic color-chasing patterns and adjust brightness and speed with the user-friendly digital display and arrow buttons. Or, pair with optional remote control (sold separately) for wireless control from a distance of nearly 100ft.


• Compatible IC Types: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A

• Product Details:

  • 3-pin XLR, RJ45 and screw terminal DMX signal IN and OUT
  • Connection type: CLK, DATA
  • Integrated mounting tabs
  • Standard DMX512 compliant interface: set DMX decode start address with buttons and digital display
  • Under stand-alone mode: change mode, speed or brightness with buttons and digital display
  • Under RF mode, use compatible RF 2.4G remote control
  • Operating temperature: -22°–131° F (-30°–55° C)
  • Rated IP20 - suitable for damp locations
  • CE, FCC




  Specifications

  Component Type

  DMX512 to SPI decoder/controller (pairs with DS-RT09)

  DMX In/Out

  RJ45 (x2), Screw Terminals, XLR3 (one male, one female)

  Finish

  Black

  IP Rating

  Non-Waterproof IP20

  Input Voltage Range

  5-24 VDC

  Material

  Steel Case

  Operating Temperature

  -30~+55 °C (-22~+131 °F)

  Output Signal

  SPI control signal, up to 1,024 pixels

  Output Voltage

  Matches Input

  Receiving Range

  98.4 ft (30 m)

  Standards And Certifications

  CE, FCC, RoHS Compliant

  Wattage

  1 W (input)

  Wireless Signal Type

  2.4 GHz RF
