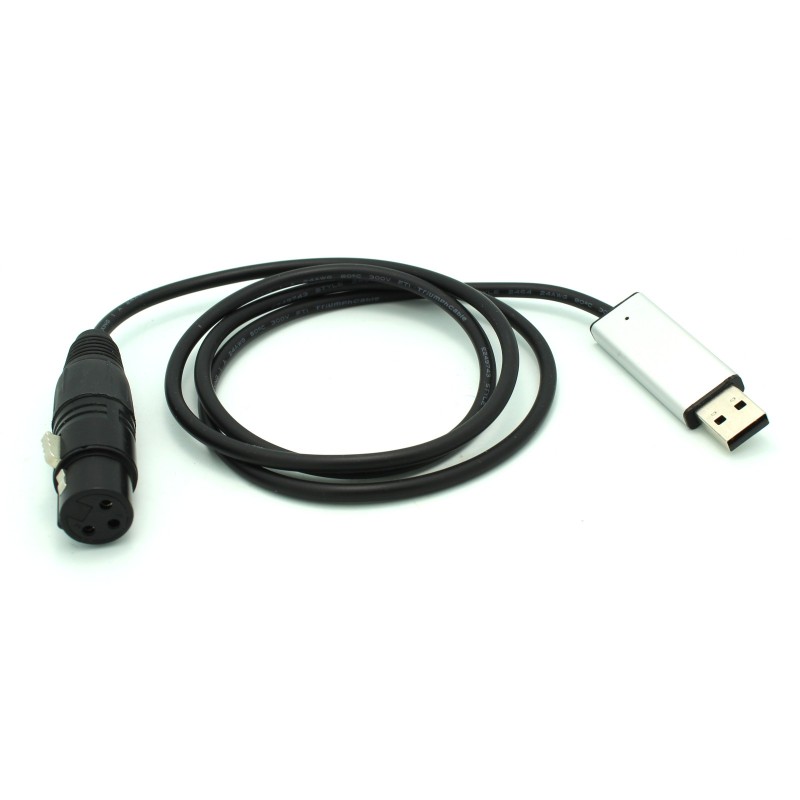

USB to DMX Interface Adapter DMX512 Computer PC Stage Lighting Controller Dimmer

Features:

• USB DMX Interface.
• Micro processor enabled.
• Supports Various 3rd party softwares.
• Internal frame buffering.
• Drivers for Windows and Linux.
• DMX512 times configurable.

• The signed driver for Windows XP, Vista and Windows 7 (32-bit). Besides, on Unix-based operating systems, the LibUSB is integrated directly into the kernel.

• Uncompress the file wherever you want and then plugin the hardware.

• The operating system will search for a driver.

• Select the correct directory (of you uncompression),

• After several seconds the driver should be installed

• ATTENTION: And then the file uDMX.dll has to be MANUALLY copied to the directory <Windows>\System32\ in order to finish the installation.

• After uDMX.dll has been copied to the directory of <windows>\System32\, for example C:\WINDOWS\system32, the driver installation is finished."

INSTALLATION:

• Download the compressed driver file.
• "Advantages of Artnet or why you should use artnet-receiver for X-uDMX512:
• Artnet is a network protocol to transfer DMX data over the ip network. Thus it is possible to transfer DMX data with wireless LAN.
• Most DMX-Software are able to output DMX-data to Art-Net. So it is not necesary to have a plugin for each program. uDMX can even be used with programs where there is no plugin.
• This works for example with:
• DMX-Control
• Freestyler
• Magic Q
• Abuelites"
• NOTE: It is not compatible with the all dmx Software.
• Until now, we know that it can be compatible with the software FreeStyler DMXControl PC-Dimmer, Q Light Controller Vixen Abuelites, MagicQ. If you use other software, please consult us before purchase.
