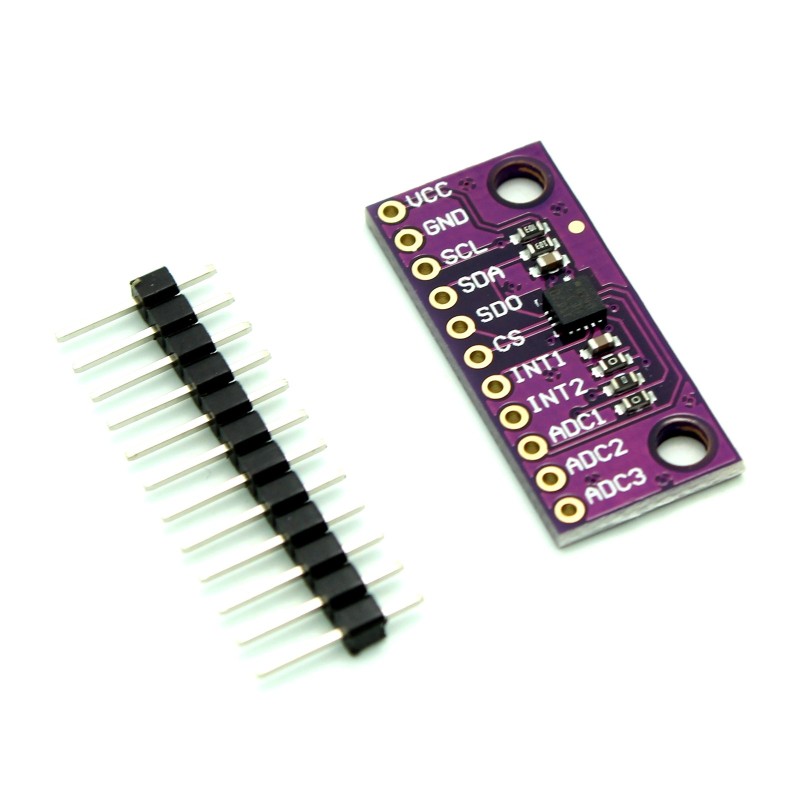

LIS3DSH High Resolution 16 bit Triple Axis Accelerometer (+-2g/4g/8g/16g)

The LIS3DSH is an ultra-low-power high-performance three-axis linear accelerometer belonging to the “nano” family with an embedded state machine that can be programmed to implement autonomous applications.

• Three axis sensing, 16-bit precision
• ±2g/±4g/±8g/±16g selectable scaling
• Interrupt output
• Dynamically selectable full scales of ±2g/±4g/±6g/±8g/±16g
• Capable of measuring accelerations with output data rates from 3.125 Hz to 1.6 kHz.
• Self-test capability allows the user to check the functioning of the sensor in the final application.
• Can be configured to generate interrupt signals activated by user-defined motion patterns.
• Integrated first-in, first-out (FIFO) buffer allows the user to store data in order to limit intervention by the host processor.
• 3 additional ADC inputs you can read over I2C
• Wide power supply voltage: 1.71 V to 3.6 V

• Independent IO power supply (1.8 V) and the power supply voltage compatible
• Ultra-low power consumption
• ±2g/±4g/±6g/±8g/±16g dynamically selectable full scale
• I2C/SPI digital output interface
• 16 bit precision data output
• Both I2C and SPI serial interface options
• Programmable embedded state machines
• Embedded temperature sensor
• Built-in self test
• Embedded FIFO
• 10000 g high impact survivability
• Raspberry Pi and Arduino Compatible
• Operating Temperature: -40 °C to +85 °C

Pinout:

• VCC: 1.71 V to 3.6 V
• GND: 0V Ground
• SCL: I2C Clock / SPI Clock
• SDA: I2C Data Line / SPI Data Input
• SDO/SAO:
  • When in I2C mode, this pin is for address selection. (Low / No connect: 0x18, High: 0x19)
  • When in SPI mode, this pin is for SPI Data Out
• CS: Chip select
• INT1: Interrupt Pin 1
• INT2: Interrupt Pin 2
• ADC1: Analog to Digital Input 1
• ADC2: Analog to Digital Input 2
• ADC3: Analog to Digital Input 3
