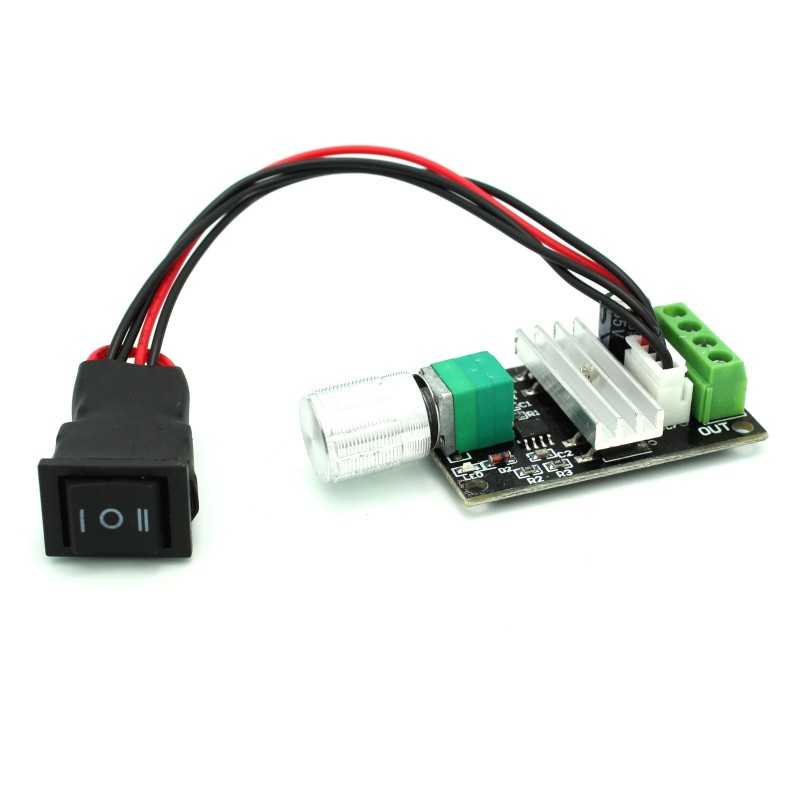

DC Motor Speed Controller: 6V-28V 3A
$9.99
✅SHIPS TODAY
Need to add a motor to your project? This is the easiest way possible! Just plug both wires from your motor into the 2 scew terminals on the right and plug between 6V and 28V power and ground to the 2 screw terminals on the left. That's it! Turn the knob to speed up or slow down your motor.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This DC Motor Speed Controller is the perfect solution for adding a simple motor with adjustable speed to your projects. It emits a PWM (Pulse Width Modulated) signal that varies between 5% and 100% when the knob is turned. A PWM signal is a signal comprised of pulses that fluctuate between on and off. When the knob is turned all the way down, the signal is on 5% of the time and off 95% of the time, which makes your motor run slowly. When the knob is turned up, the amount of time the signal is on increases, thus speeding up your motor until the knob is turned all the way up and the signal is on 100% of the time. Popular for art installations, automation projects and anywhere else you may simply want to add something that spins with ease.
Specifications:
- Power Input:
- Voltage: Between 6V and 28V (match the power input to the power rating of the motor. We recommend this 12V DC Adapter + plug adapter or battery pack for 12V motors like Hobby Motor TS3317)
- Input Location: 2 leftmost screw terminals when viewed from bottom labeled + and -
- Voltage: Between 6V and 28V (match the power input to the power rating of the motor. We recommend this 12V DC Adapter + plug adapter or battery pack for 12V motors like Hobby Motor TS3317)
- Motor Output:
- Output Location: 2 rightmost screw terminals when viewed from bottom unlabeled pins
- Motor can be plugged in either way, to reverse direction, switch the two motor connections.
- Max Output Current: 3A
- PWM Duty Cycle: 5% - 100%
- PWM Frequency: 21kHz
- Size (L*W*H): 50 x 32 x 15mm / 1.97"x 1.26"x 0.59"
- Cable length: Approx 150 mm / 5.9"
- Can be used to control:
- Speed on DC Motors
- Speed on Linear Actuators
- Speed on DC Fans
- Can also be used to dim LED lights that take power between 6V and 28V!
- any other device that takes a PWM signal
