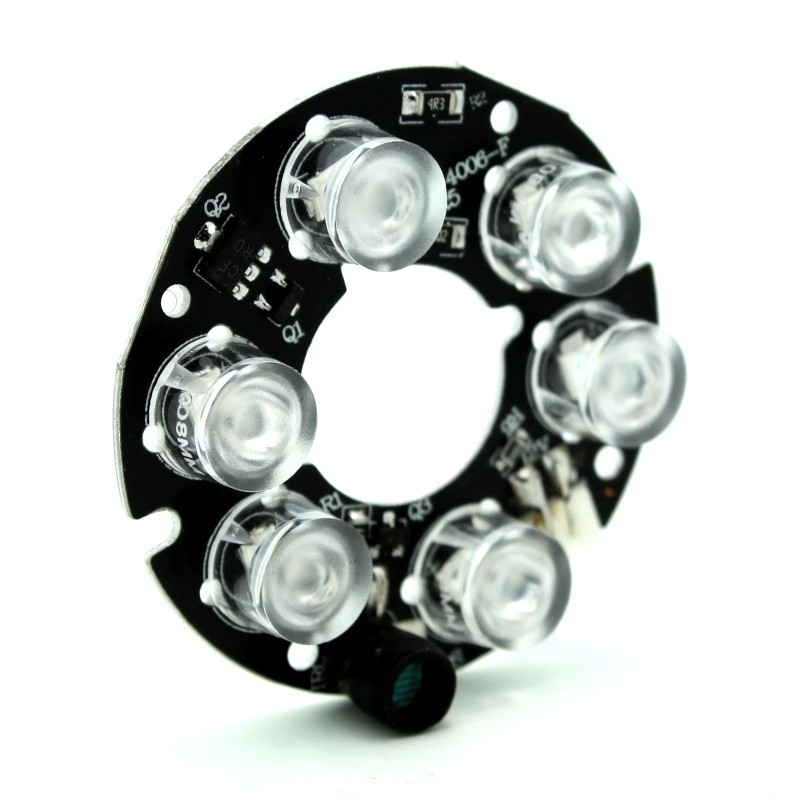

Infrared LED Ring Attachment for Raspberry Pi NoIR Camera
$10.99
✅SHIPS TODAY
Add night vision to your Raspberry Pi projects with this Infrared LED ring attachment for the Raspberry Pi NoIR cameras.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Infrared LED Ring for Pi NoIR cameras
- Gives your Raspberry Pi Night Vision!
- Built in light sensor automatically powers your Infrared LED Ring light when it's dark out.
- This Infrared LED Ring has 6 Infrared LEDs on a single ring for strong infrared lighting that will give your camera the ability to see in the dark!
- Supply Voltage: 12V DC (requires external power supply or battery pack)
- Power input port: JST PH (requires wire connector)
- Wiring Instructions: When using the above wire connector, connect the red wire to Ground and black wire to +12V. When the light sensor is covered, or it is dark outside, the lights will turn on.
- Sensor output port: Micro JST (works with wire connector) You can use the sensor output port to obtain readings directly from the light sensor. Connecting to it is optional and not required to light the LED ring.
- Supply Current: 300mA to 400mA
- Ring Outer Diameter: 45mm
- Ring Inner Diameter: 17mm
- Onboard light sensor (The LEDs will only turn on when it is dark out to conserve energy)
- When the light in the room is below the ambient light threshold, the LEDs will be on.
- Operating Temperature: -10C to 50C
- Max Viewing Distance: 10m to 15m (32.8ft to 49.2ft)
- Lens Angle: 45 degree and 90 deg
- Lens Diameters: 3.6mm and 8mm (every other LED) suitable for both close and far range applications
- Wavelength: 850nm
TS3447
