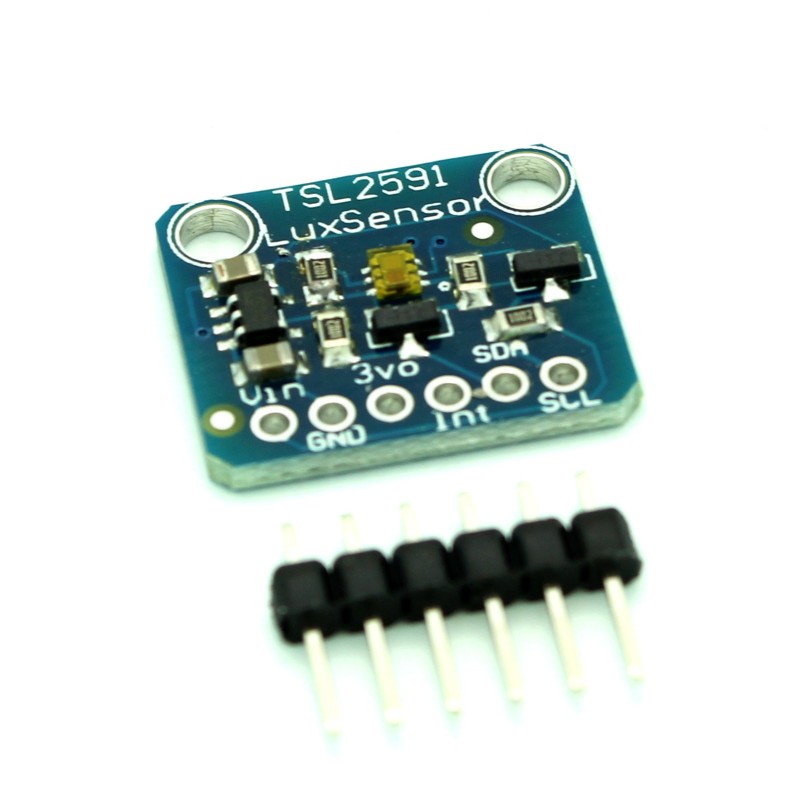

TSL2591 High Dynamic Range Digital Light Sensor
$6.90
✅SHIPS TODAY
Use this Ultra High Range Light Sensor Module to get precise luminosity readings. Configurable gain/timing ranges so you can measure from 188 uLux to 88,000 Lux. Arduino and Raspberry Pi Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Digital High Dynamic Range Light Sensor Module
- Lux Range: 188 uLux to 88,000 Lux
- Adjustable gain / timing via I2C
- Pinout:
- VCC: Power
- GND: Ground
- 3vo: 3.3V Power Output (can supply up to 100mA of 3.3V power to other devices. Not necessary to connect for basic functionality, it is just a bonus so you can share power supplies between this board and others.)
- INT: Interrupt Pin (Not necessary to connect for basic functionality. Can be set via I2C registers to trigger if the luminosity passes a threshold or after conversion.)
- SDA: Serial Data Line
- SCL: Serial Clock Line
- I2C address: 0x29 and 0x28
- Approximates Human eye Response
- Wide dynamic range 1 to 600,000,000 Counts
- Operating Voltage: 3V-5V
- Current Rating: 15mA
- Arduino and Raspberry Pi Compatible
- Dimensions: 19mm x 16mm x 1mm / .75" x .63" x .04"
- Weight: 1.1g
- Operating Temperature: -30C to 80C
- Serial Communication Protocol: I2C
- Can be used with Arduino, Raspberry Pi, Teensy, Photon etc.
