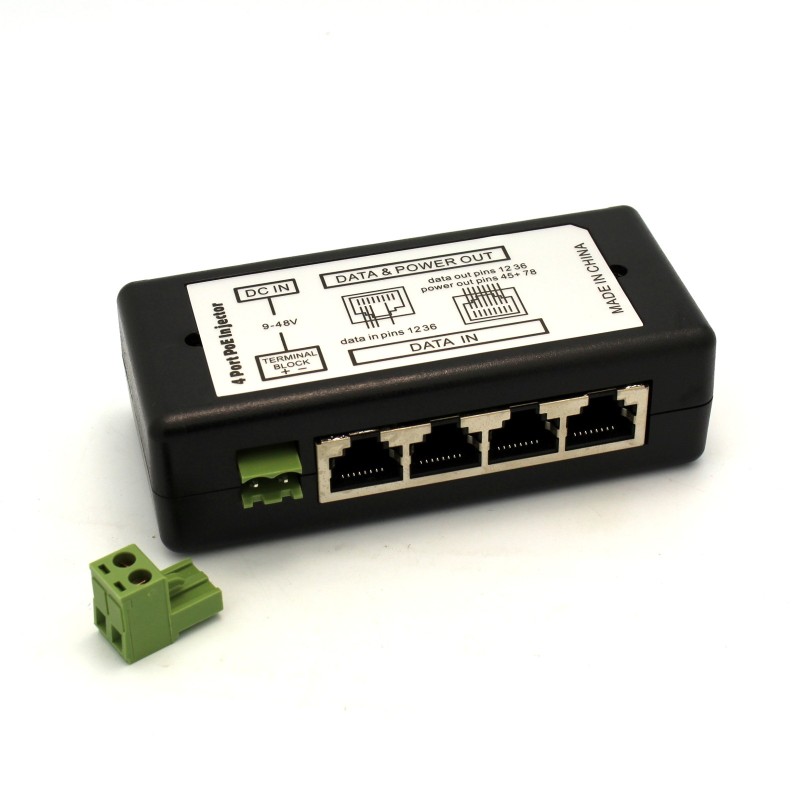

4 Port PoE Injector

Features:

• 4 Port PoE Injector
• Injects up to 48V power over the ethernet line so you can power and transfer data through the same cable
• Ethernet Power Pins: 4/5(+),7/8(-)
• Compatible with all IEEE802.3af network devices
• Useful for routers, modems and other devices that can receive power over ethernet (PoE)
• 4 10M/100M RJ45 ports
• Power Input= Power Output x Channels

  Example: 12V 4A DC input = 12V 1A DC output per channel, 28V 2A DC Input = 48V 0.5A DC output per channel
  If you only use 2 of 5 channels, 12V 2A DC input = 12V 1A  DC output per channel.
  Considering the distance to your PoE devices, the suggested power input should be greater than the power output x number of channels channels. Example: Use 48V 3A DC input to supply 48V 0.5A DC each for 4 channels.

• 4 port power injector module
• 4 Lan ports, 4LAN + Power ports, shielded
• Power PoE devices such as routers, VOIP phones, IP cameras, Wifi access points, and more.
• Same voltage distributed to all ports, they share the available power equally
• Power Input Jack Size: 5.5x2.1mm
• LED power indicator light
• works with any ethernet switch or router
• Use any power supply from 12V to 48V
• Pins 1/2 & 3/6 for data
• Pins 4/5 & 7/8 for power
• Connectors: RJ45
• Input Voltage: 12V - 48V
• Current Output: 0.5A - 3A
• Operating Temperature: 0C to 50C
• Storage Temperature: -40C to 70C
• Operating Humidity: 10% to 80% RH
