10W RGBW LED with Heat Sink
$14.99
✅SHIPS TODAY
This 10 Watt High Power RGBW LED is useful for making colorful flashlights, headlamps, robot headlights etc. Just connect to a battery to any combination of Red, Green, Blue and White terminals for a very bright colored light.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

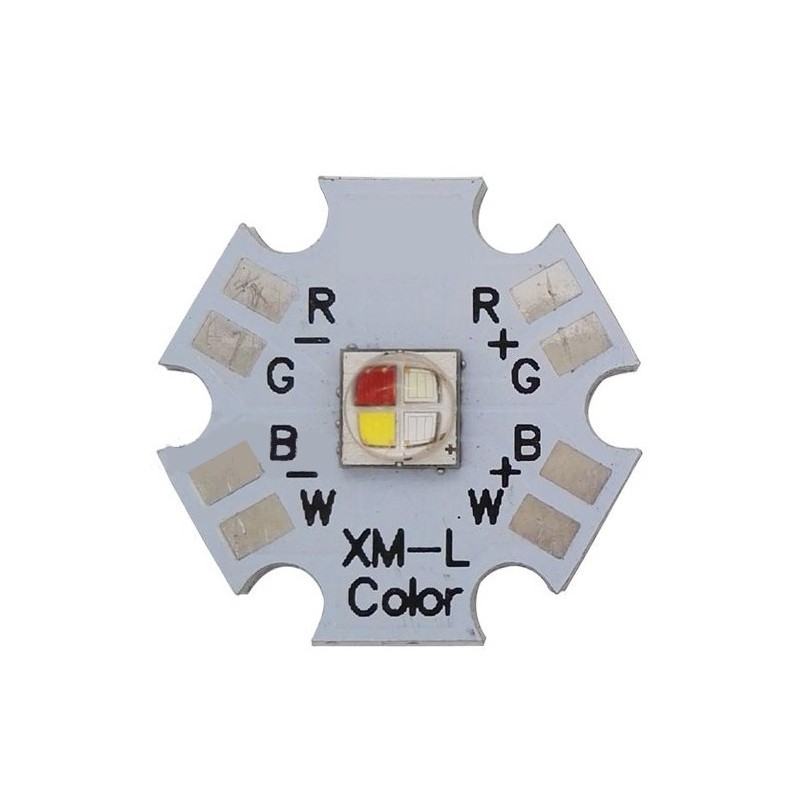

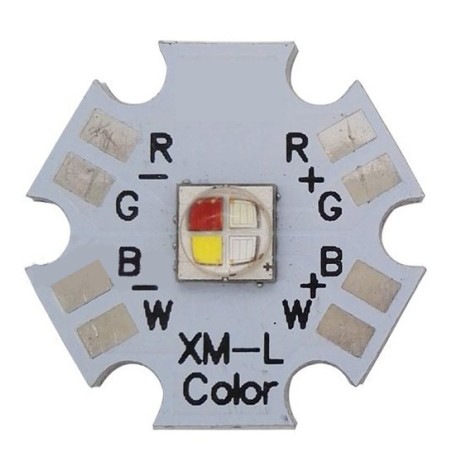

This 10 Watt RGBW LED is just what you need to add a very bright, high intensity light into your projects. You can set it to virtually any color by powering a combination of the 4 terminals, one each for Red Green Blue and White. Soldered onto a 20mm metal plate to dissipate any excess heat as a heatsink, this LED provides high brightness without heating up!
Specifications:
- LED Size: 5mm on 20mm Heatsink Board
- Luminous Intensity: Red 87.4 lumens, Green 114 lumens, Blue 39.8 lumens, White 100 lumens
- Forward Voltage: Red 2.25~2.6V, Green 3.3~3.9V, Blue 3.1~3.7V, White 3.1~3.7V
- Viewing Angle: 120 degrees
- Number of Input Pins: 8
- Inputs:
- R+: Red Power
- R-: Red Ground
- G+: Green Power
- G-: Green Ground
- B+: Blue Power
- B-: Blue Ground
- W+: White Power
- W-: White Ground
- Color Temperature:
- Red 620~630nm
- Green 520~535nm
- Blue 450~465nm
- Warm White 3000-3200K
- Forward Current: 1A
- Lens Type: Water-clear
- Power Dissipation: 10W
- Low thermal resistance: 3.5°C/W
- Maximum junction temperature: 150°C
- ESD Withstand Voltage: 8000V
- Reflow solderable - JEDEC J-STD-020C
