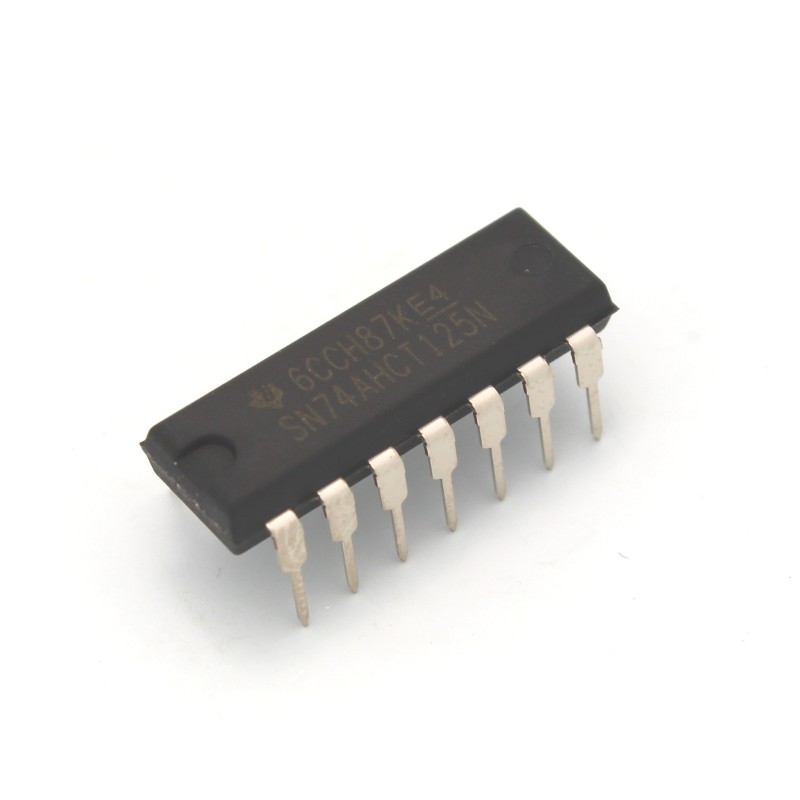

74AHCT125 - Quad Level-Shifter (3.3V to 5V)

$1.49
✅SHIPS TODAY

Connect 3.3V controllers such as the Raspberry Pi to 5V devices such as LED strips and pixels. This level shifter converts 3.3V signals to 5V.

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Features:

  • Quad Level Shifter
  • Converts signals from 3.3V to 5V
  • Useful for connecting between:
    • Raspberry Pi and 5V LED pixels (for this set Vcc to 5V)
    • Raspberry Pi and Arduino boards (for this set Vcc to 5V)
    • 3.3V Pro Micro & Teensy Boards and Arduino boards (for this set Vcc to 5V)
    • any 3.3V signal from a 3.3V board to a 5V board (for this set Vcc to 5V)
  • Supply Voltage (Vcc): 4.5 to 5.5V
  • Input Voltage 0 to 5.5V
  • Output Voltage: 0 to Vcc
  • Input Transition Rise or Fall Rate: 20 ns/V
  • Operating Temperature: -40 +125 °C



Raspberry Pi Wiring: (also see image above)

If you're using the 74AHCT125 level converter chip to control Neopixel-compatible LED Strips, wire up your Raspberry Pi as follows:


  • Pi GPIO18 to 74AHCT125 pin 1A
  • 74AHCT125 pin 1Y to NeoPixel-Compatible DIN
  • Power supply ground to 74AHCT125 ground
  • Power supply ground to 74AHCT125 pin 1OE
  • Power supply ground to Pi GND
  • Power supply ground to NeoPixel-Compatible GND
  • Power supply 5V to 74AHCT125 VCC
  • Power supply 5V to NeoPixel-Compatible 5V.



Click here to view the datasheet
