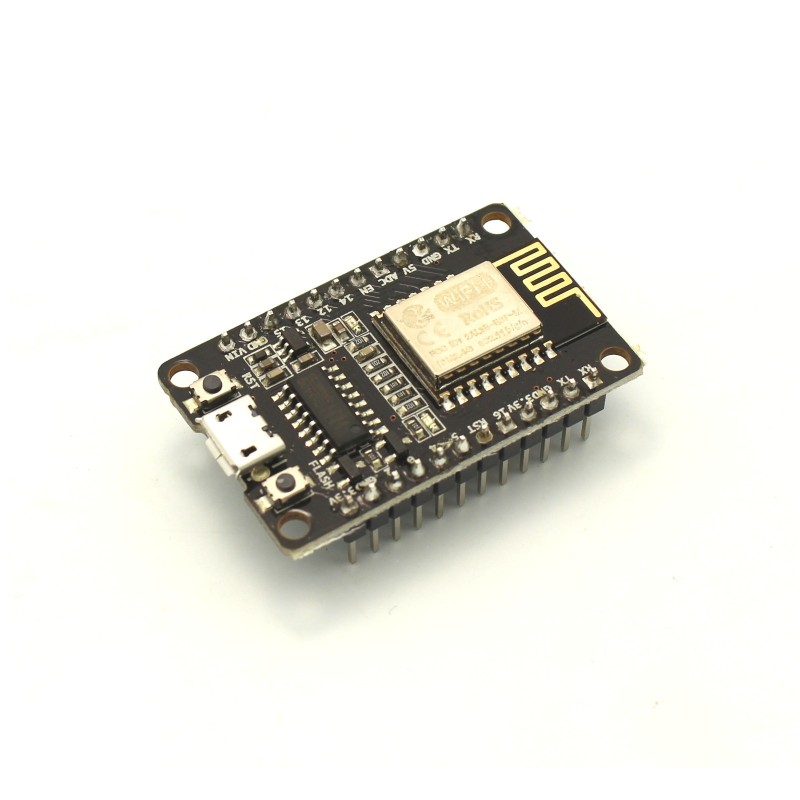

Mini ESP-M3 ESP8285 Breakout Board

$13.99
✅SHIPS TODAY

This ESP-M3 ESP8285 Mini IoT Board is a wifi-enabled microcontroller that will give your projects wifi connectivity plus programmable functionality all in one! The latest in Internet of Things projects it's virtually an ESP8266 + 1M of Flash Memory in an even smaller package!

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Features

  • ESP8285 = ESP8266 + 1M Flash
  • Can withstand high temperatures up to 125 degrees Celsius!
  • If you have any existing NodeMCU Lua ESP8266 source code programs, they can be used directly
  • Applications can be started directly from the external Flash
  • Built-in cache memory facilitates system performance and optimizes storage
  • Can also be used as a standalone serial Wifi Module for use with Arduino UNO or other microcontrollers accessed only through the SPI / SDIO interface or I2C / UART ports
  • Uses CH340 chip (requires driver download)
  • Code build from: https://github.com/micropython/micropython
  • Built-in Tensilica L106 ultra-low power 32-bit microprocessor, clocked at 80MHz and 160MHz support RTOS.
  • Support AT remote upgrade and cloud OTA upgrade.
  • Support for Smart Config features (including Android and iOS devices)Fully compatible with ESP8266, the source can be used to transplant.
  • Built-in TCP / IP protocol stack.
  • Built-in 1-channel 10-bit high-precision ADC.
  • Peripheral Interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO.
  • The deep sleep hold current is 10uA and the shutdown current is less than 5uA.
  • Wake up within 2 ms, connect and pass the packet.
  • Standby power consumption less than 1.0mW (DTIM3).
  • Built-in 1M bytes of SPI Flash .
  • Supports 802.11 b / g / n / e / i.
  • Support Station, SoftAP, SoftAP + STA mode.
  • Support for Wi-Fi Direct (P2P).
  • Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC hardware acceleration.
  • P2P discovery, P2P GO mode / GC mode and P2P power management.
  • WPA / PA2 PSK and WPS.
  • 802.11 i security features: pre-authentication and TSN.
  • Hold 802.11n (2.4 GHz).
  • 802.1h / RFC1042 frame encapsulation.
  • Seamless roaming support.
  • Operating temperature range: -40 ℃ -125 ℃.
  • Pins:
    • More than 10 GPIOs
    • 2 UARTs
    • 1 ADC
    • 1 En
    • 1 Wakeup pin
    • 1 HSPI
    • 1 I2C
    • 1 I2S
  • Working temperature: -40℃-+125℃;
  • Dimensions: 1.055 x 0.630 inches (26.8 x 16mm)
