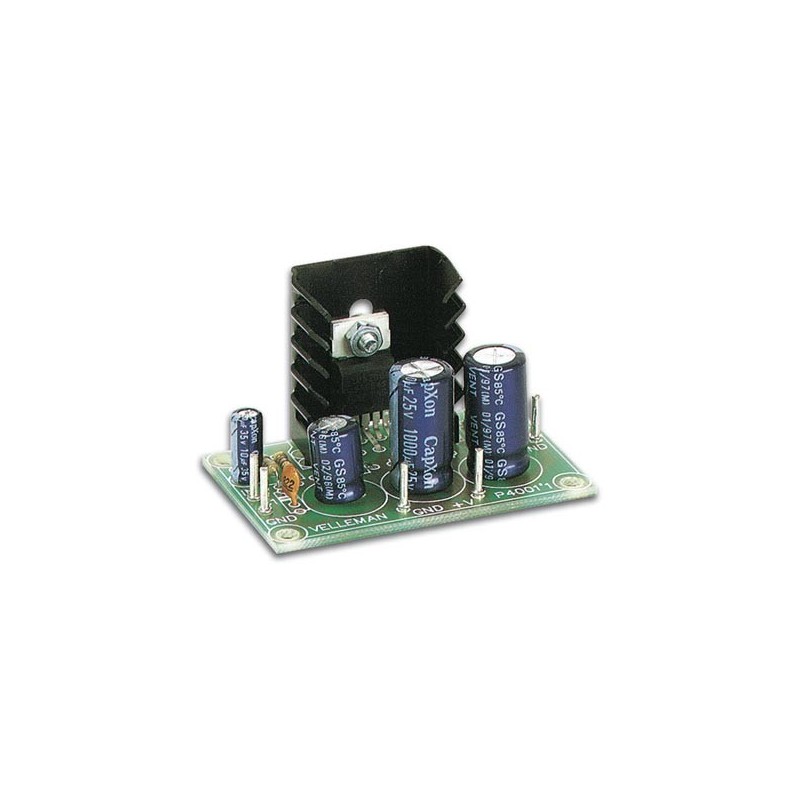

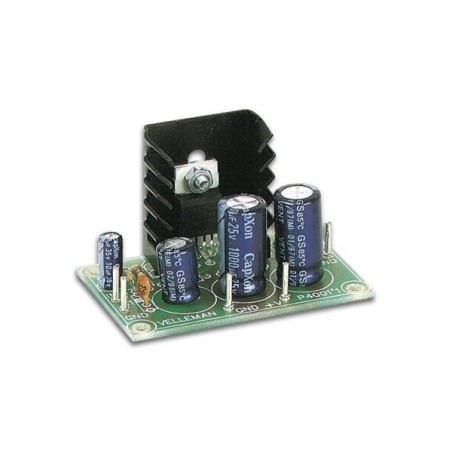

7 Watt Mono Audio Amplifier
$15.25
✅SHIPS TODAY
Build your own Audio Amplifier with this Soldering Kit.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This small audio amplifier is capable of delivering 4Wrms at 4ohms. The IC is completely thermally and short-circuit protected. A conventional direct current can be connected as supply.
Specifications:
- music power output: 7W / 4ohm
- RMS output: 3.5W / 4ohm or 2W / 8ohm
- total harmonic distortion: 0.05% (1W / 1kHz)
- frequency response: 20Hz to 20kHz (-3dB)
- signal/noise ratio: 86dB (A weighted)
- input sensitivity: 40mV / 150Kohm
- overload and short-circuit protected
- supply voltage: 15V DC (8 to 18V DC possible) / 0.5A
- dimensions: 2.2 x 1.4"
Recommended for tinkerers age 13 & up.
