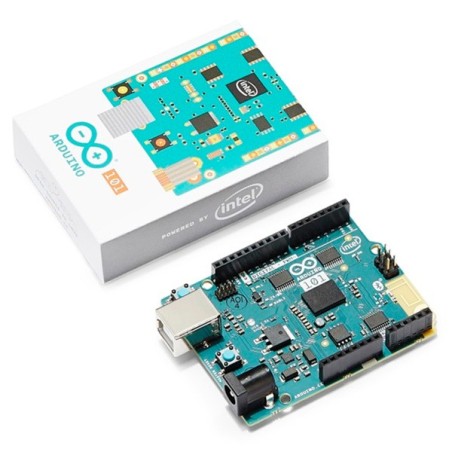

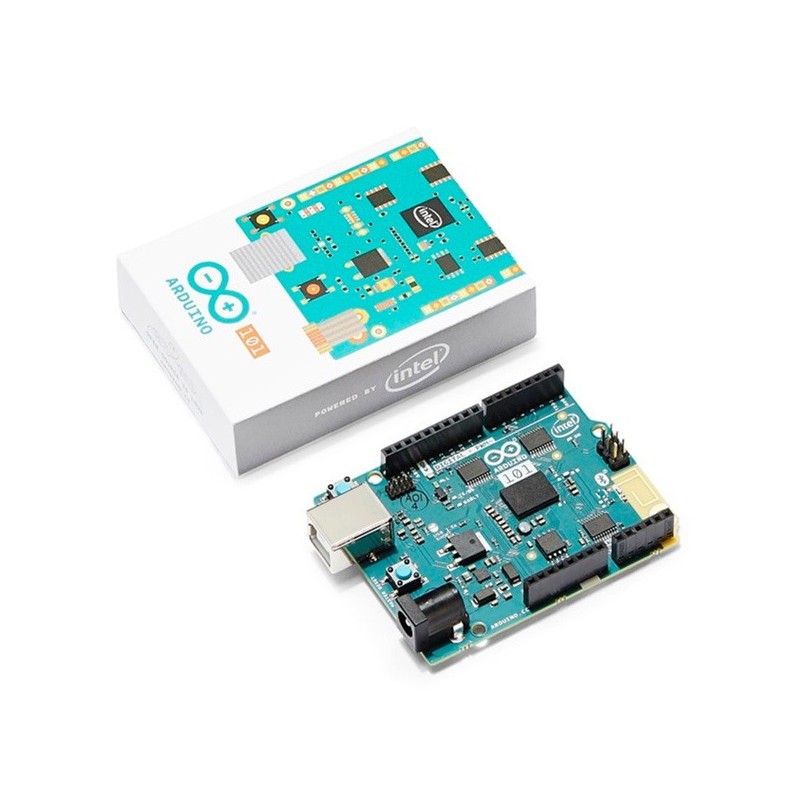

Arduino 101 with Intel Curie
$59.99
✅SHIPS TODAY
The Arduino 101 with Intel Curie combines the ease-of-use of the classic boards with the latest technologies. The board recognises gestures, and features a six-axis accelerometer and gyroscope. Control your projects with your phone over Bluetooth Low Energy connectivity!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Intel Curie on board!
- Bluetooth LE capable
- 6-axis accelerometer & gyro built in
- Dual Core ( x86 Quark and 32 bit ARC cores)
- Core Speed: 32MHz
- Flash Memory: 196kB
- SRAM: 24kB
- Digital input/output pins: 14
- Number of Digital I/O Pins with PWM Output Capability: 4
- Analog Input Pins: 6
- USB Type B connector (same as UNO and Mega Boards)
- USB Port supports serial communication and program uploads
- DC Power Jack for external power
- External Power Voltage: 7V - 20V DC
- DC Current per I/O Pin: 20mA
- ICSP header with SPI signals and I2C dedicated pins
- Operating Voltage: 3.3V
- 5V tolerant I/O pins
- Programmable via Arduino IDE
- Dimensions: 3.0" x 2.1" x 0.5" ( 75mm x 53mm x 12mm)
- Net weight: 24.6g
TS2189
1 Item
Specific References
- EAN13
- 7640152112768
