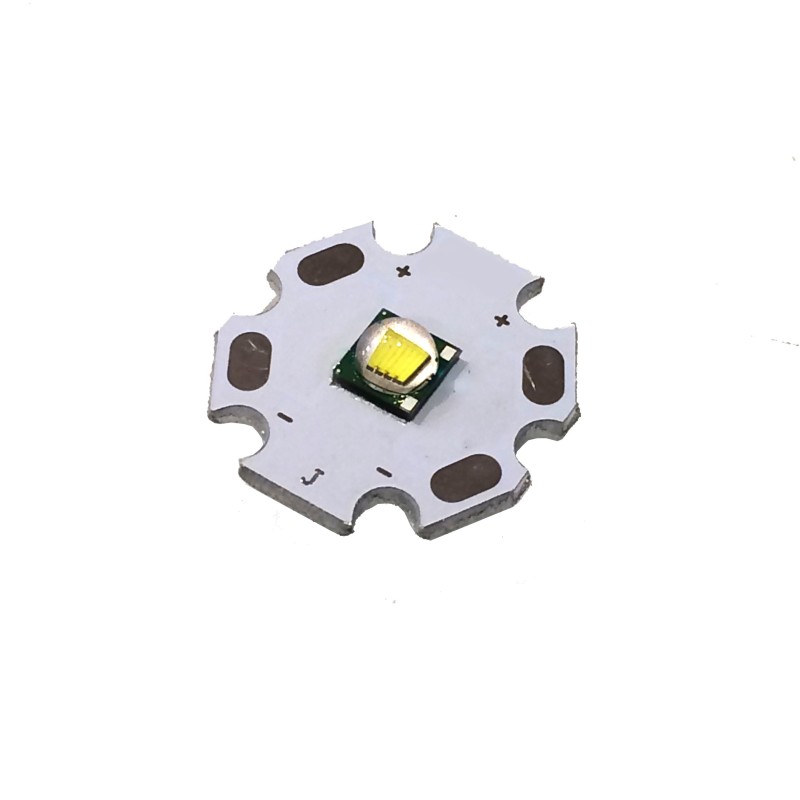

10 Watt High Power LED with Heat Sink
$9.99
✅SHIPS TODAY
This 10 Watt High Power Bright White LED is useful for making flashlights, headlamps, robot headlights etc. Just connect to a 2.9V - 4V battery for a very bright white light.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This 10 Watt LED is just what you need to add a very bright, high intensity light into your projects. Soldered onto a 20mm metal plate to dissipate any excess heat as a heatsink, this LED provides high brightness without heating up!
Specifications:
- LED Size: 5mm on 20mm Heatsink Board
- Luminous Intensity: 1198 Lumens (1198000 mcd)
- Forward Voltage: 2.9V - 4V
- Viewing Angle: 125 degrees
- Color Temperature:
- Cool White: 6500-7000K
- Forward Current: 3000mA
- Lens Type: Water-clear
- Power Dissipation: 10W
- Low thermal resistance: 2.5°C/W
- Maximum junction temperature: 150°C
- ANSI-compatible chromaticity bins
- Unlimited floor life at ≤ 30oC/85% RH
- Reflow solderable - JEDEC J-STD-020C
- Electrically neutral thermal path
- 116 lumens-per-watt efficacy at 3A and 25°C
To light, this LED can be soldered to this battery pack.
