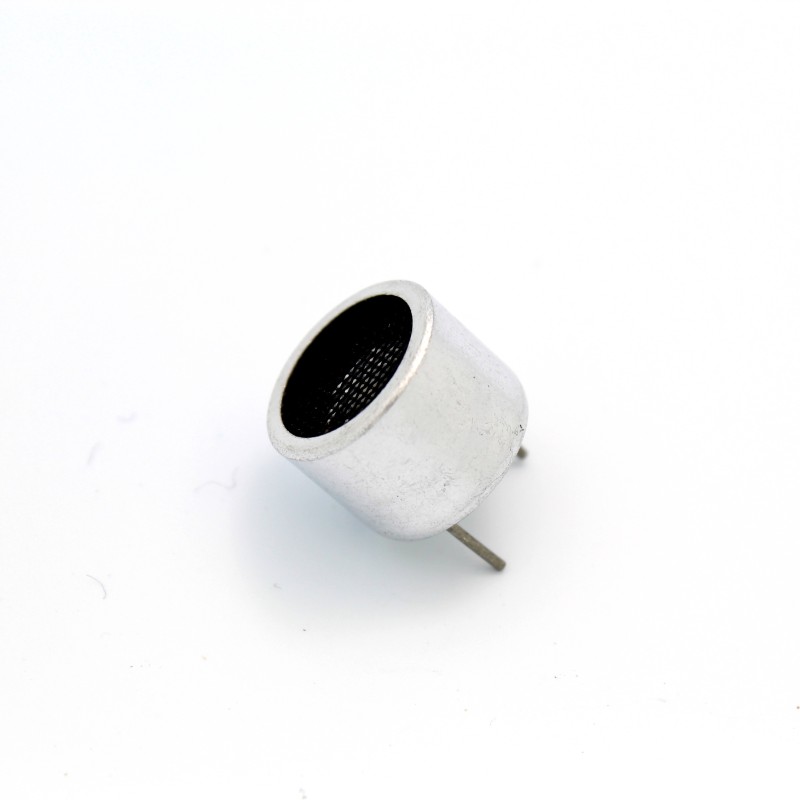

Ultrasonic Transceiver
$5.95
✅SHIPS TODAY
This bare Ultrasonic Transceiver is useful for building your own Ultrasonic Distance Sensor.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Diameter: 16mm
- Pin spacing: 10mm
- Distance: Approx. 0.2m to 18m
- T for the transmitter, R for receiver.
- Nominal frequency: 40KHz
- Transmit Sound Pressure at 10V (0dB = 0.02mPa): ≥ 117dB
- Receiving sensitivity at40KHz (0dB = V / ubar): ≥-65dB
- Capacitance at 1KHz, <1V: 2000pf ± 30%
- Construction: Open structure type
- Center frequency: 40.0 ± 1.0KHz
- Maximum input voltage: 60Vp-p
- Directivity: 60 ° ± 15 ° (-6dB)
- Operating temperature: -20 ° C ~ +70 ° C
- Storage Temperature: -40 ° C ~ +85 ° C
- Weight: 2.2g
TS1760
