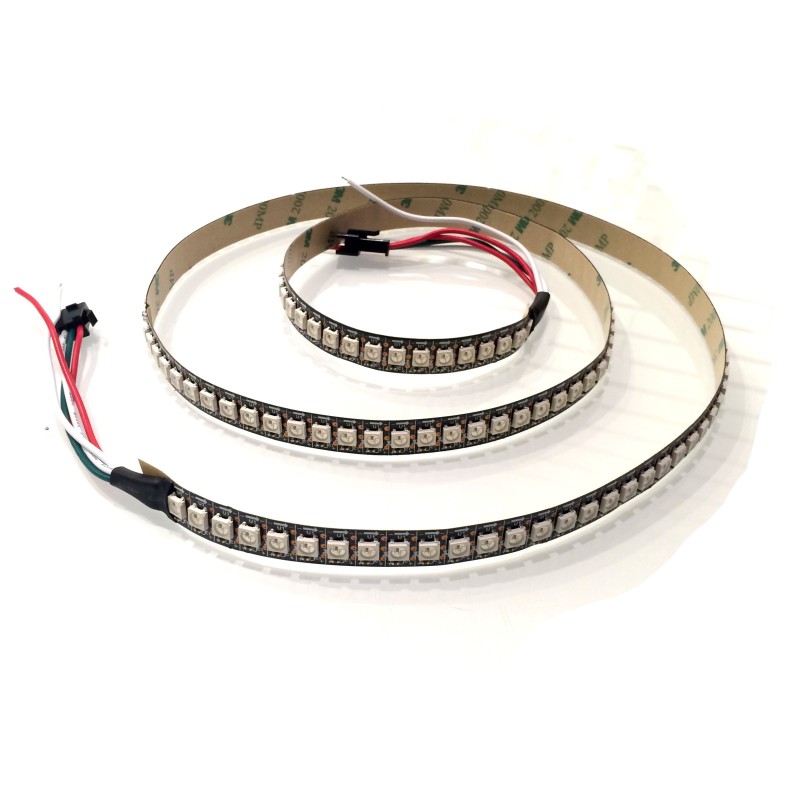

Addressable RGB LED Strip 144 Pixel - 1m (Neopixel Compatible)
$59.95
✅SHIPS TODAY
This is an ultra high density RGB LED strip with 144 individually addressable WS2812 RGB LEDs packed on a single 3.28ft (1 meter) long strip! Arduino compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
When you want to control each LED's color and intensity individually and A LOT of LEDs, this is your solution. Create cool lighting displays where each LED can be controlled all on it's own and turn on/off, change color and brightness by itself. Use an Arduino board to control the strip using just 2 pins just like our LED Sequins and Addressable RGB LEDs. Each LED has a chip inside it to control it's behavior on it's own which allows you to cut the strip after any single LED if you want to use a shorter length!
Specifications:
- LED Type: 5050 SMD Pixel (Individually Addressable Neopixel Compatible)
- Chipset: WS2812 (Same as our LED Sequins and Addressable RGB LEDs)
- Size: Length 1 meters x Width 1.2cm x Thickness 0.5cm
- Emitting Color: RGB (every LED can be a different color at the same time)
- Grey Scale: 256
- 8 bit color
- Working Voltage: 5V DC
- LED Quantity: 144 LEDs
- Max Wattage: 38W/meter
- Max DC Current Draw: 7.6A/meter
- JST Connector Pinout:
- VCC: Red Wire, 5V
- GND: White Wire, 0V
- DIN: Green Wire, Data In
- DOUT: Data Out (Green wire, to next strip)
- Every LED is cuttable!
TS1342
