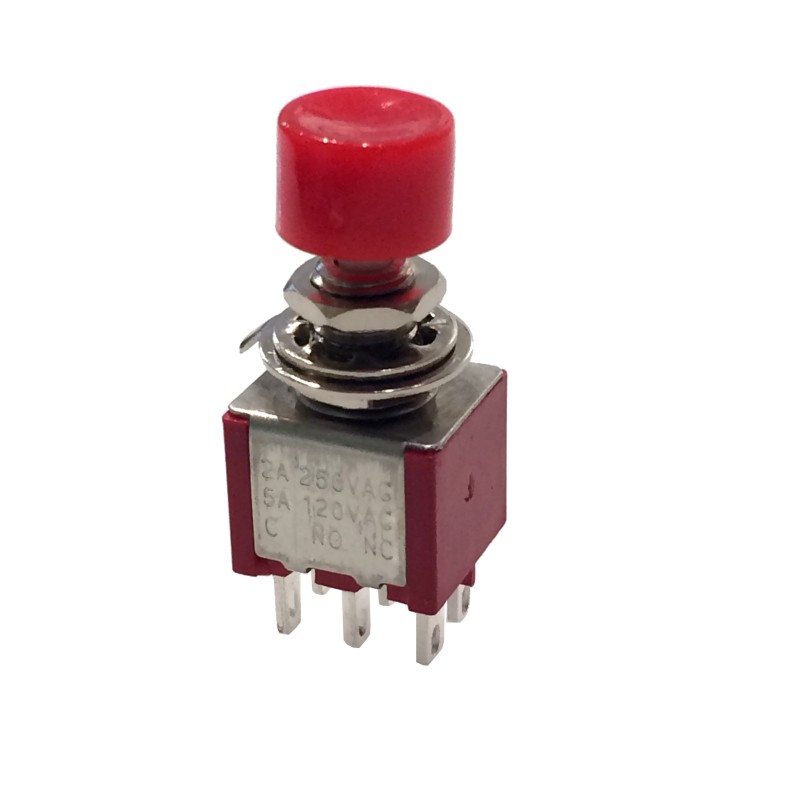

Momentary Button DPDT 6 Pin
$3.99
✅SHIPS TODAY
Control 2 circuits at once using this DPDT Button. Each of the 2 circuits can select between 2 options (pressed or unpressed).
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This DPDT Button with is perfect for switching between 2 options when pressed and unpressed. With 6 pins total, it's like 2 SPDT buttons side by side allowing you to control 2 separate circuits at once.
It has 2 sets of 3 Poles and is Double Pole Double Throw (DPDT) which means that when you leave the button in the up position, the top and middle poles get connected, and when press the button to the down position, the bottom and middle poles get connected. Very convenient in circuits because you can not only use it as an ON/OFF button by connecting the middle and the top or the middle and the bottom poles to your circuit, but also as a toggle button connecting the middle pole to the top and the middle pole to the bottom when you press it into the up and down positions respectively.
Useful for having a single momentary ON/OFF button control 2 things at once such as a circuit and an indicator light.
Specifications:
- Number of Pins: 6
- Switch Type: Double Pole - Double Throw
- Size:
- Height: 1.26" (32mm)
- Width: 0.43" (11mm)
- Length: 0.47" (12mm)
- Switch Type: Momentary Button
- Rated Voltage: 250V
- Rated Current: 2A @250VAC , 5A @ 125VAC
- Includes:
- Button
- Mounting Nut
- Washer
- Lock Washer
TS1255R
