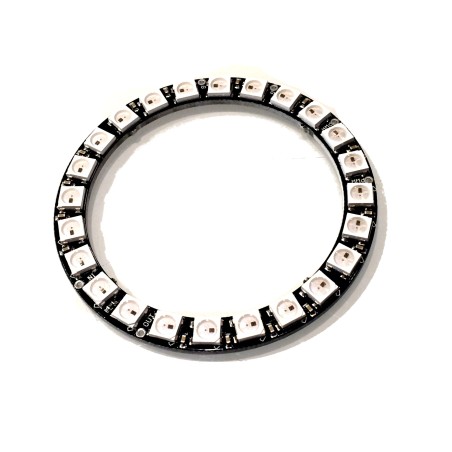

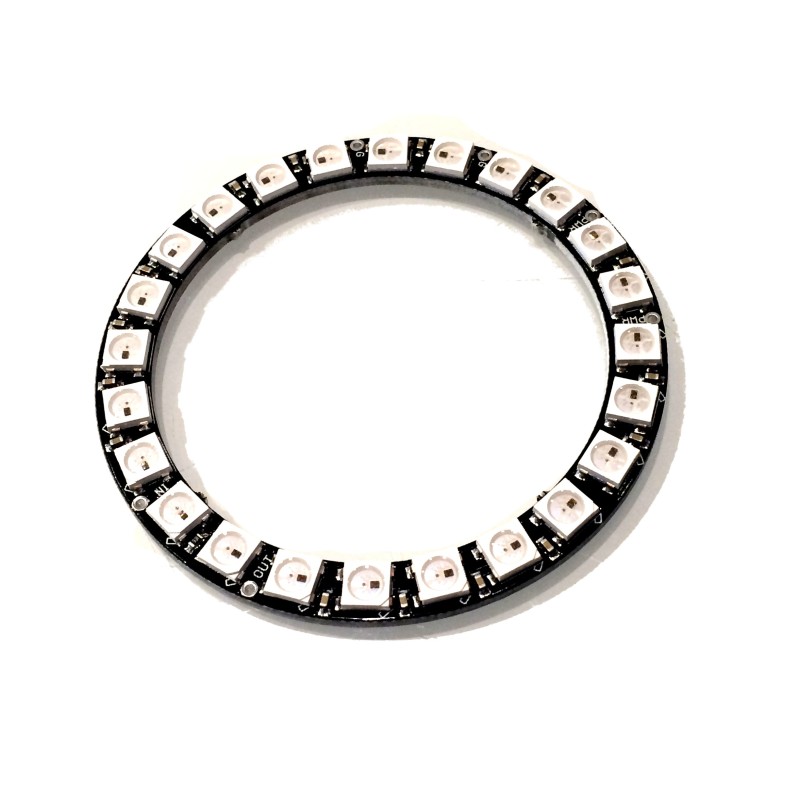

2.6 inch 24 x WS2812 5050 RGB LED Ring with Integrated Drivers (Neopixel Compatible)
$18.99
✅SHIPS TODAY
This RGB LED Ring has 24 Pixels nicely arranged in a circle. Each WS2812 RGB LED pixel is addressable to make cool lighting designs.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Use this 24 Pixel RGB LED Ring to add a ring of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED ring if you'd like to chain multiple together! Just connect PWR to 5V DC, GND to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 24 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.
Specifications:
- RGB LED Ring
- Chipset: WS2812 (Neopixel compatible)
- Number of LEDs: 24
- Diameter: 2.6" (66mm)
- Can be soldered to conductive thread or wire
- Pinout:
- 5V
- GND
- DIN: Data Input
- DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
- Click here to download the Datasheet
- Click here to download the Arduino Sample Code
